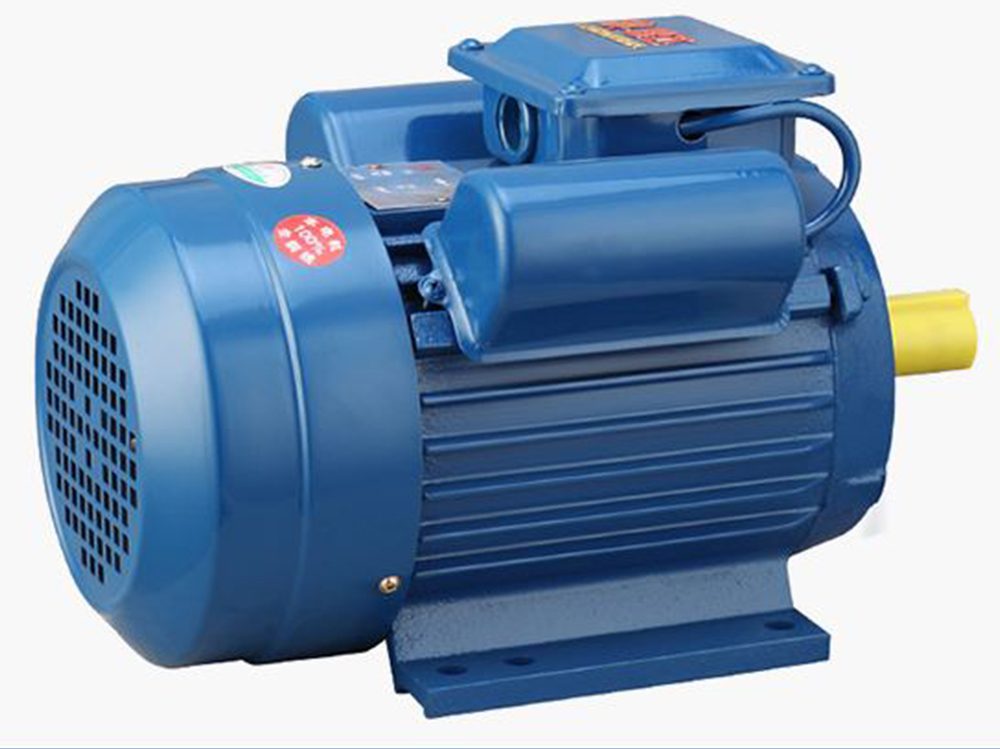

Brand New Electric motor single phase 3hp 2.2kw Cast Iron Housing Electric Motor

Single-Phase Dual-Capacitor Electric Motor Model: Electric Motor 3.0HP | 2.2KW Electric Motor Voltage: 230V | Frequency: 50Hz

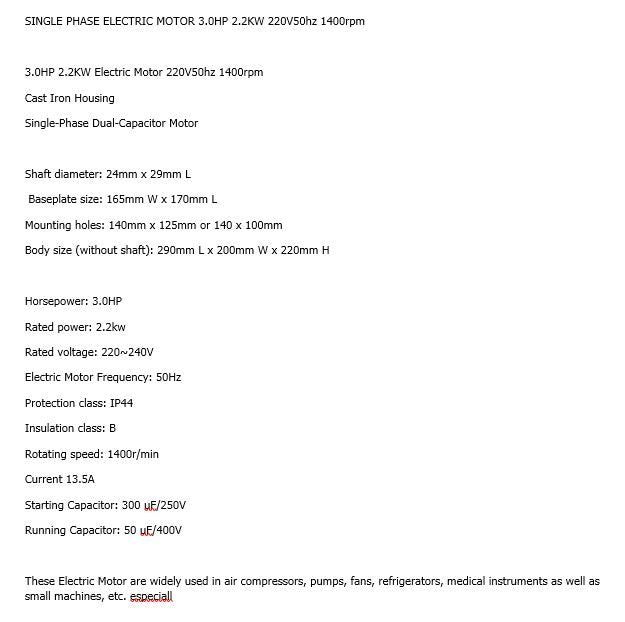

Key Features: Horsepower: 3.0 HP Rated Power: 2.2 kW Rotating Speed: 1400 r/min Current: 13.5 A Starting Capacitor: 200 uF/230V Physical Dimensions: Baseplate Size: 152 mm W x 174 mm L

Mounting Specifications: Front to rear: 100-125 mm Across: 140 mm Shaft Size: 24 mm Shaft Length: 50 mm Keyway Slot: 8 mm Overall Body Size (excluding shaft): 295 mm L x 200 mm W x 225 mm H Protection and Insulation: Protection Class: IP44 Insulation Class: B Shaft size is 24mm Shaft length is 50mm

Versatile Applications: This electric motor is designed for a wide range of applications, including: Air Compressors Pumps Fans Refrigerators Medical Instruments Small Machines Ideal for use in environments with only a single-phase power supply, this cast iron electric motor provides reliable performance and durability.

Summary: Crafted with a robust cast iron housing, this electric motor is built to last and deliver consistent power. Upgrade your machinery with our 3.0 HP Electric Motor, engineered for efficiency and versatility across various applications.
