WE ARE NZ COMPANY. THIS ITEM IS STOCKED IN AUCKLAND.

SPECIFICATIONS:
* Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) Telephone cable
* Cable State Testing (2-wire): Line DC detecting and anode, cathode determination, Ringing signal detecting, Open, short and cross test.
* Powered by DC 9V battery (both receiver and emitter).
* The max working current: emitter: <=10mA; Receiver: <=30mA
* Signal output electric status: 8Vp-p
* Signal transmission format: multi-frequency impulse
* Distance of signal transmission: >=3km
* Appearance dimension: 175 x 42 x 27mm(receiver); 126 x 49 x 34 (emitter)

FEATURES:
* Trace telephone wire/LAN cable. Trace wire in electrical system. It can take place of cable tester.
* Verify LAN cable condition. Continuity test. Cable Assignment Test and Cable State Testing (2-wire).
* Low Battery Indication with Bright white LED flash light. Rapidly find the target wire from among plenty of telephone wires. Rapidly find the target wire from among plenty of network wires.
* Find target wire on all types of connected operating Ethernet switch /Router/PC.

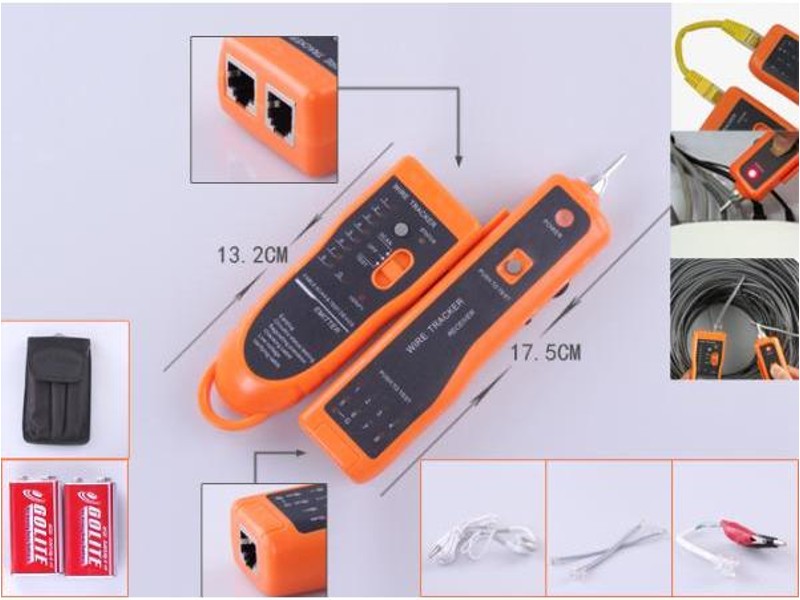

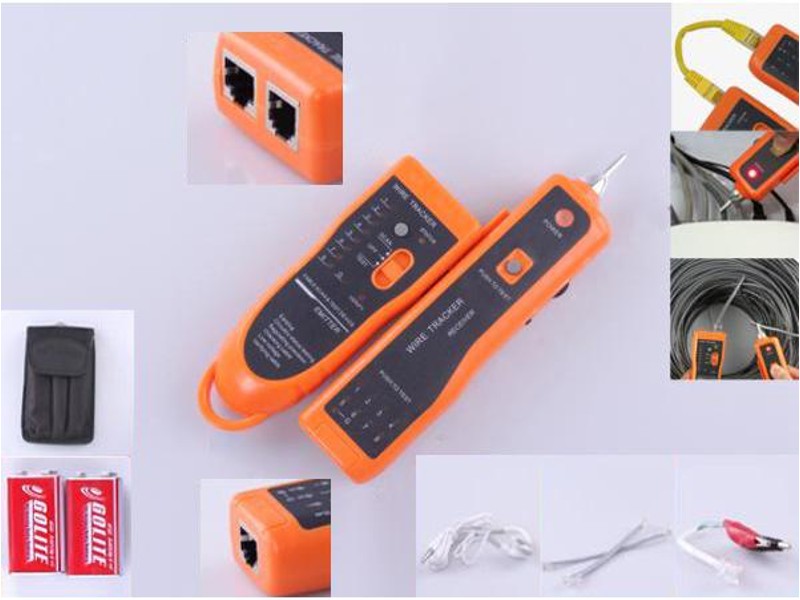

PACKAGE INCLUDES:

1 x Cable Transmitter
1 x Cable Receiver/Tracker
1 x RJ45 Cable
1 x RJ11 Cable
1 x Cable with crocodile clamp
2 x 9V Battery
1 x Earphone
1 x Instruction manual
