WE ARE NZ COMPANY. THIS ITEM IS STOCKED IN AUCKLAND.

Product Code:BoringBarSet

This 18-Pcs Machining Lathe Boring Bars Holder is a versatile and reliable tool for machining and cutting tasks. With its double-sided chips and high grip strength, it offers clear speed advantages in cutting off large margins and processing, while its good toughness and hardness ensure long service life.

FEATURES:

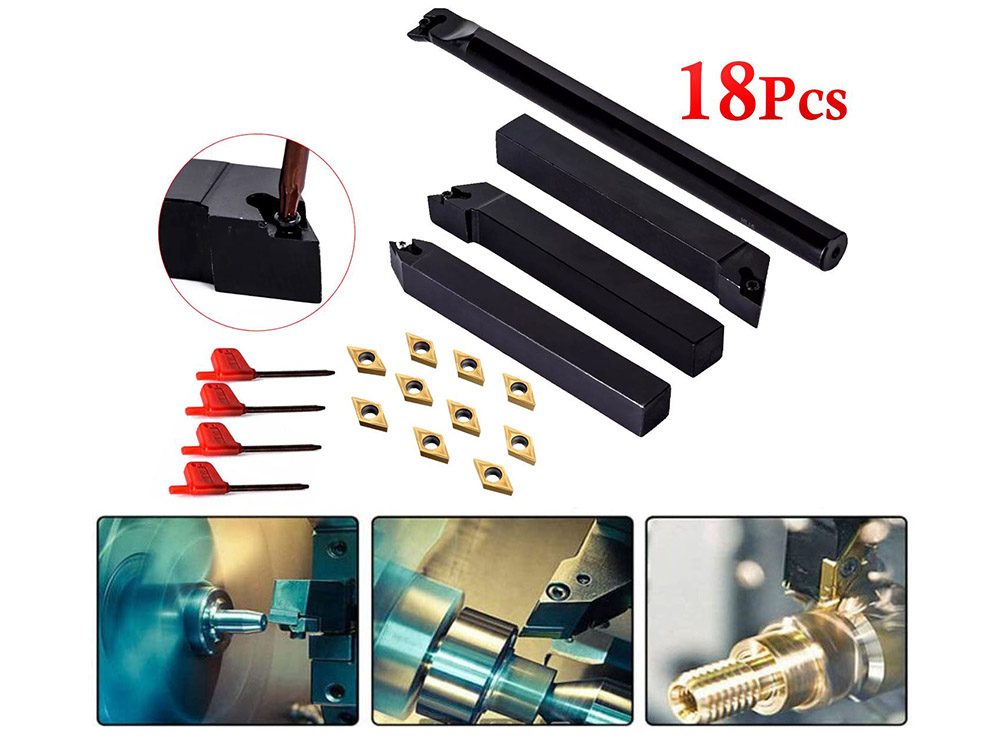

• 18-Pcs Machining Lathe Boring Bars Holder
• Double-sided chips that can be used from both front and back
• Suitable for high-speed cutting at high temperatures
• Good toughness and hardness, with a long service life
• Good low-temperature impact toughness
• High grip strength, impact resistance, and strength
• Ideal for large margin cutting off and processing
• Easy blade and pad replacement with only a wrench
• Improved surface gloss of cutting pieces
• Suitable for steel semi-finishing

SPECIFICATIONS:

• Condition: Brand New
• Material: Alloy Steel + Carbide
• Inserts: DCMT070204
• Carbide Blade Center Dia: 3mm
• Blade Size: 7 x 7mm

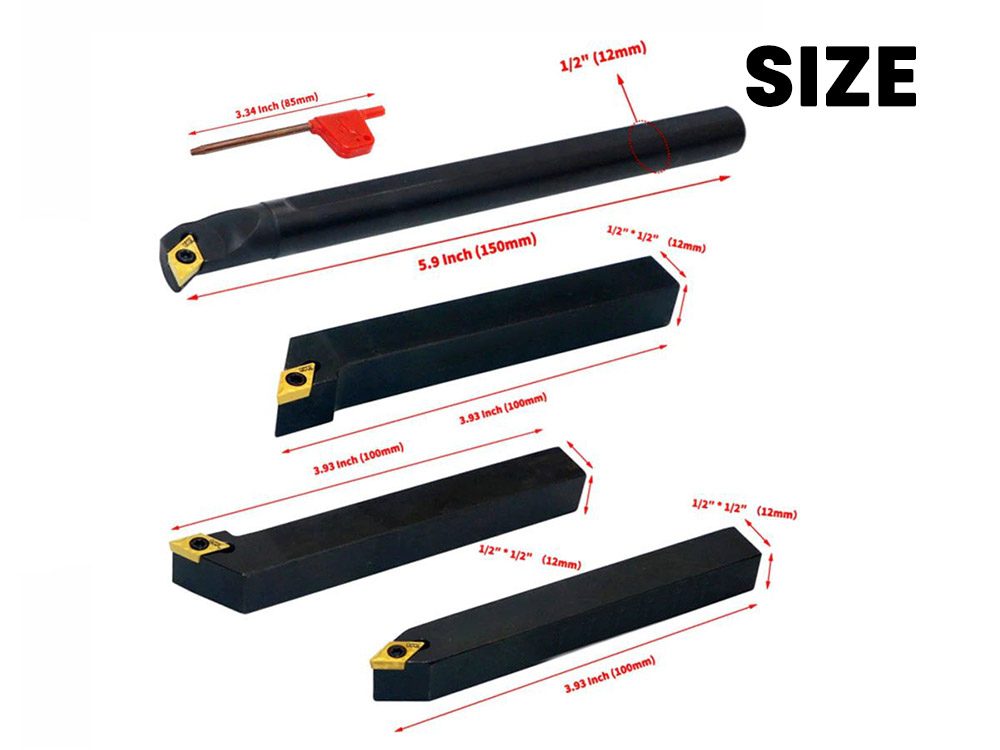

• Product Size:

S12M-SDUCR07: --Shank Diameter:12mm --Overall Length:150mm --Direction: Right Hand --Min. Caliber: 17mm --Lead Angle: 95°

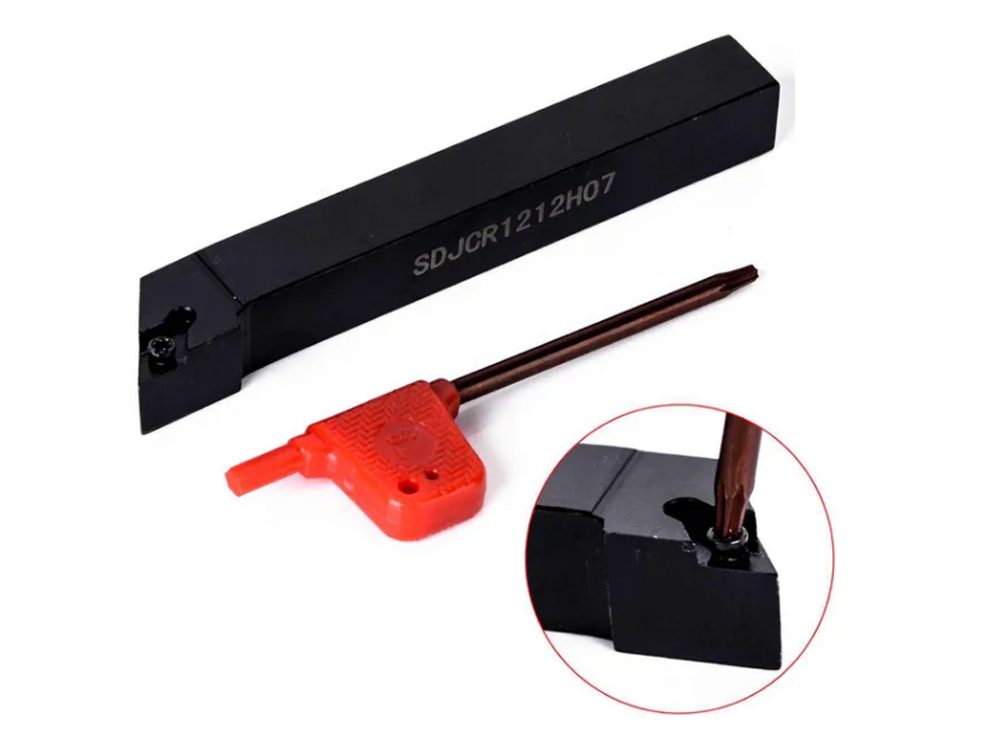

SDJCR1212H07: --Shank Square Diameter:12mm --Overall Length:100mm --Direction: Right Hand --Lead Angle: 93°

SDJCL1212H07: --Shank Square Diameter:12mm --Overall Length:100mm --Direction: Left Hand --Lead Angle: 93°

SDNCN1212H07: --Shank Square Diameter:12mm --Overall Length:100mm --Direction: Straight --Lead Angle: 62.5°

PACKAGE CONTENTS:

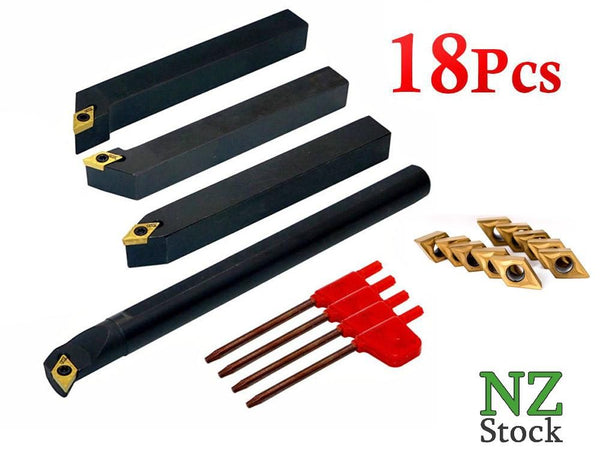

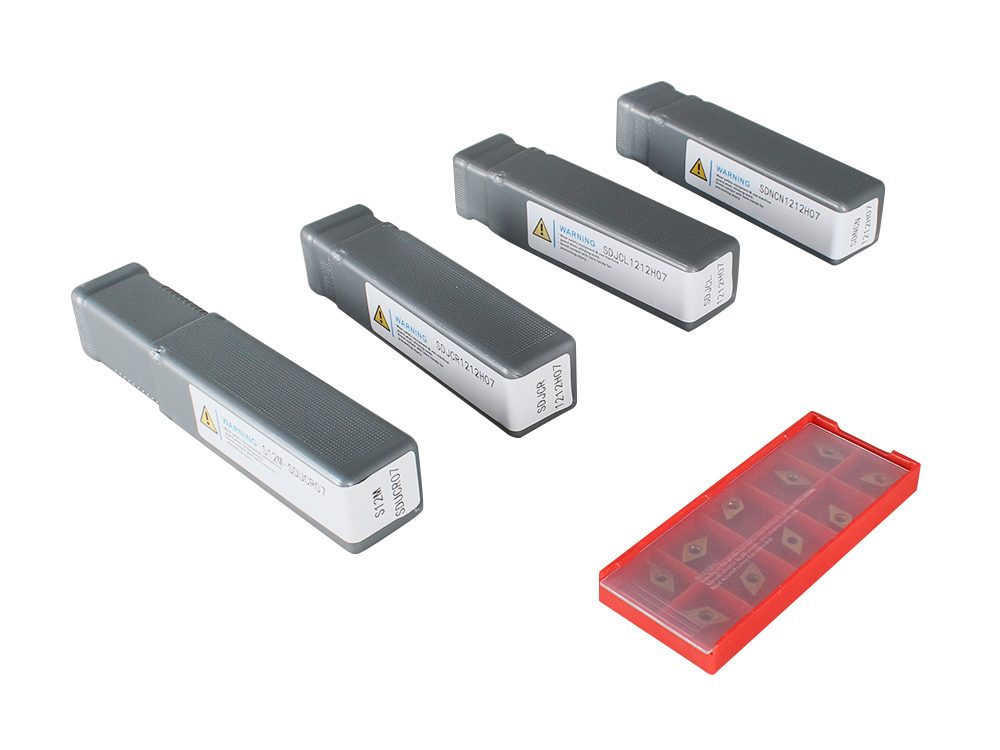

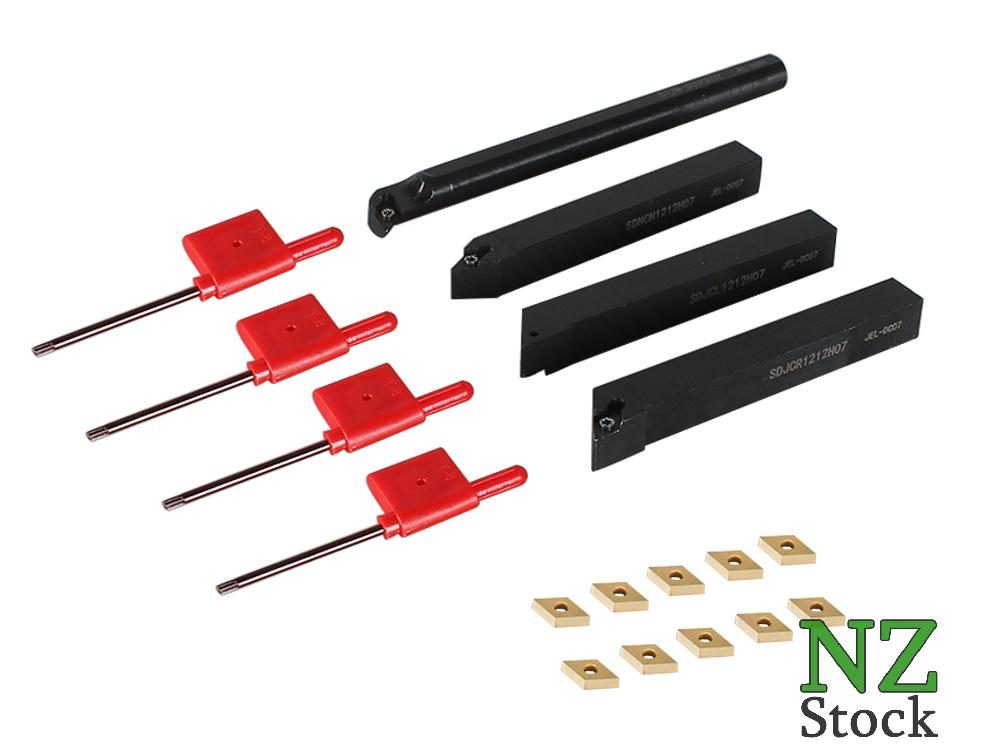

1 x S12M-SDUCR07 Boring Bar 1 x SDJCR1212H07 Boring Bar 1 x SDJCL1212H07 Boring Bar 1 x SDNCN1212H07 Boring Bar 10 x DCMT070204 Carbide Blade 4 x Wrench 1 x Manual 1 x Retail Box
